Security films play a crucial role in reinforcing glass against breakage, offering protection from forced entry, blasts, and natural disasters. To ensure their effectiveness, rigorous testing standards are used to evaluate performance. One such standard is ASTM-F3561, which provides a structured approach for testing security films under impact conditions.
The full ASTM-F3561 test standard requires ballistic weakening of the sample system. However, this blog post will explore ASTM-F3561 impactor portion testing and its application in evaluating varying security film thicknesses.
Understanding ASTM-F3561 Testing
ASTM-F3561 is a standardized test method designed to assess the impact resistance of security glazing materials, including security films applied to glass. The test simulates real-world scenarios where glass is subjected to blunt-force impacts, such as during break-ins or explosions.
The impactor portion testing focuses on measuring the film’s ability to hold shattered glass together upon impact, thereby reducing the risk of penetration and injury. The test involves dropping a standardized impactor from a defined height onto a film-covered glass specimen to assess how well the film resists breakage and holds glass fragments in place.
ASTM-F3561 Test Process
During impactor portion testing, the following steps are carried out:
- Specimen Preparation: A glass panel is coated with a security film and mounted according to ASTM guidelines.

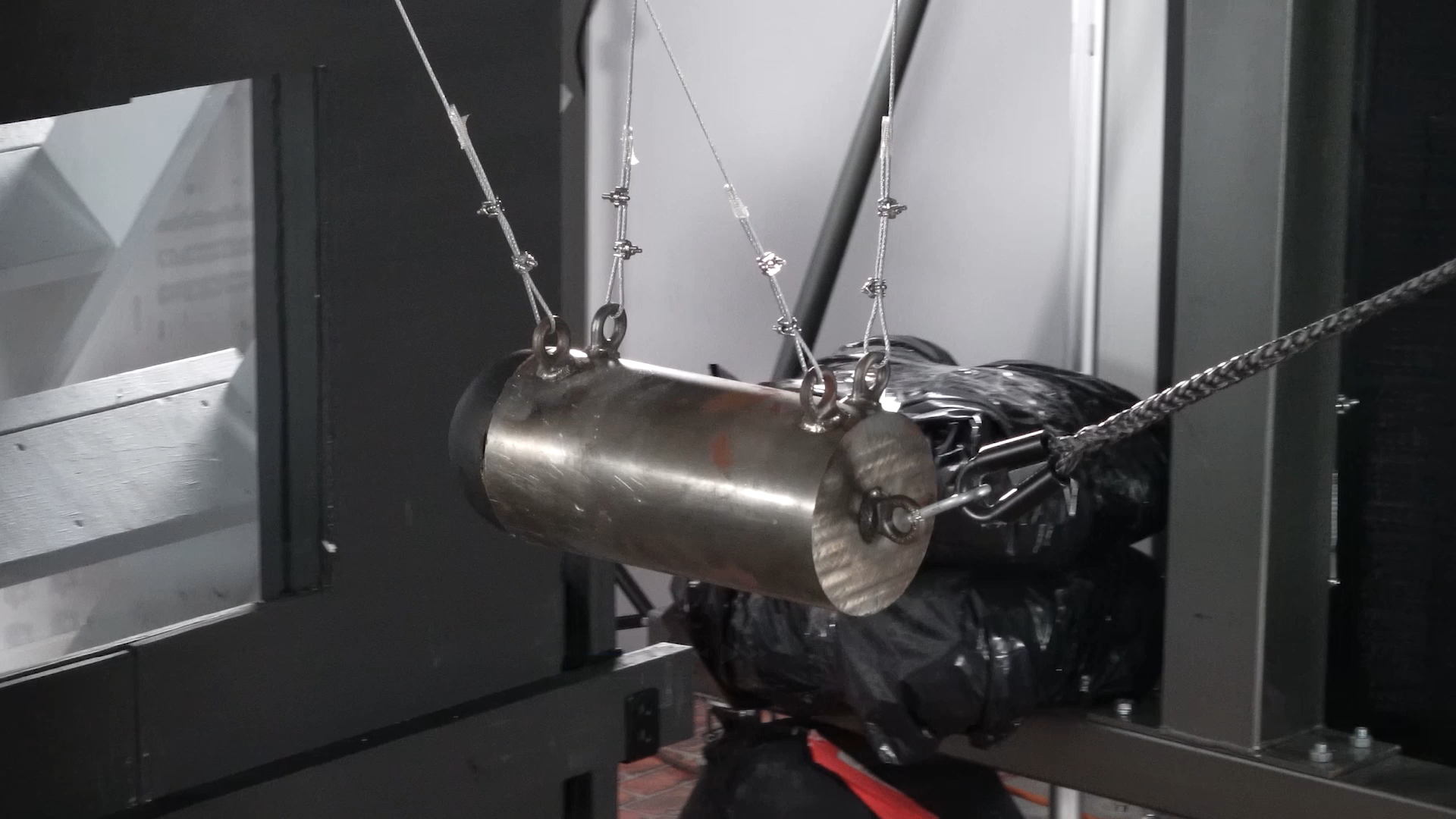

- Impactor Selection: A standardized impactor (such as a metal ball or pendulum) is chosen based on the testing requirements.
- Impact Execution: The impactor is released from a specified height to simulate real-world force.
- Damage Assessment: The level of breakage and glass retention by the film is evaluated.
- Pass/Fail Criteria: The specimen passes if the film holds the glass fragments together and prevents penetration beyond the set standard.
Security Film Thickness and Performance
ASTM-F3561 impactor portion testing is an essential evaluation method for security films, helping manufacturers and end-users determine the best film thickness for specific security needs.
While 8 and 14 mil films provide excellent protection, 24.6 mil films provide higher levels of protection against impact and forced entry. Understanding these differences ensures that security films are properly selected to meet the intended safety and security requirements.
Would you like more details on how these films perform under different real-world threats? Contact NGS, today!
